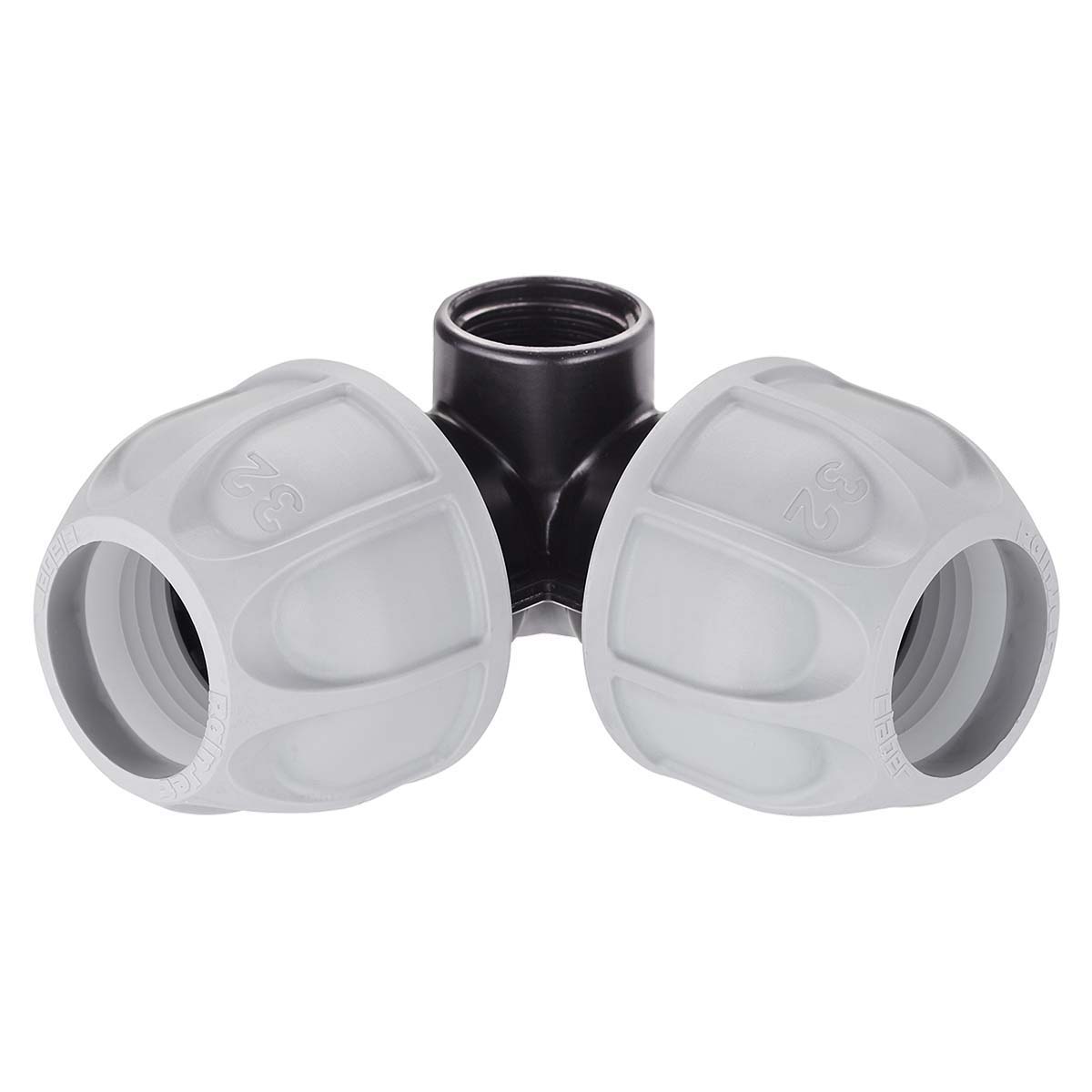

Elbow connector Ø 32 mm F. 3/4” thread

code 90426

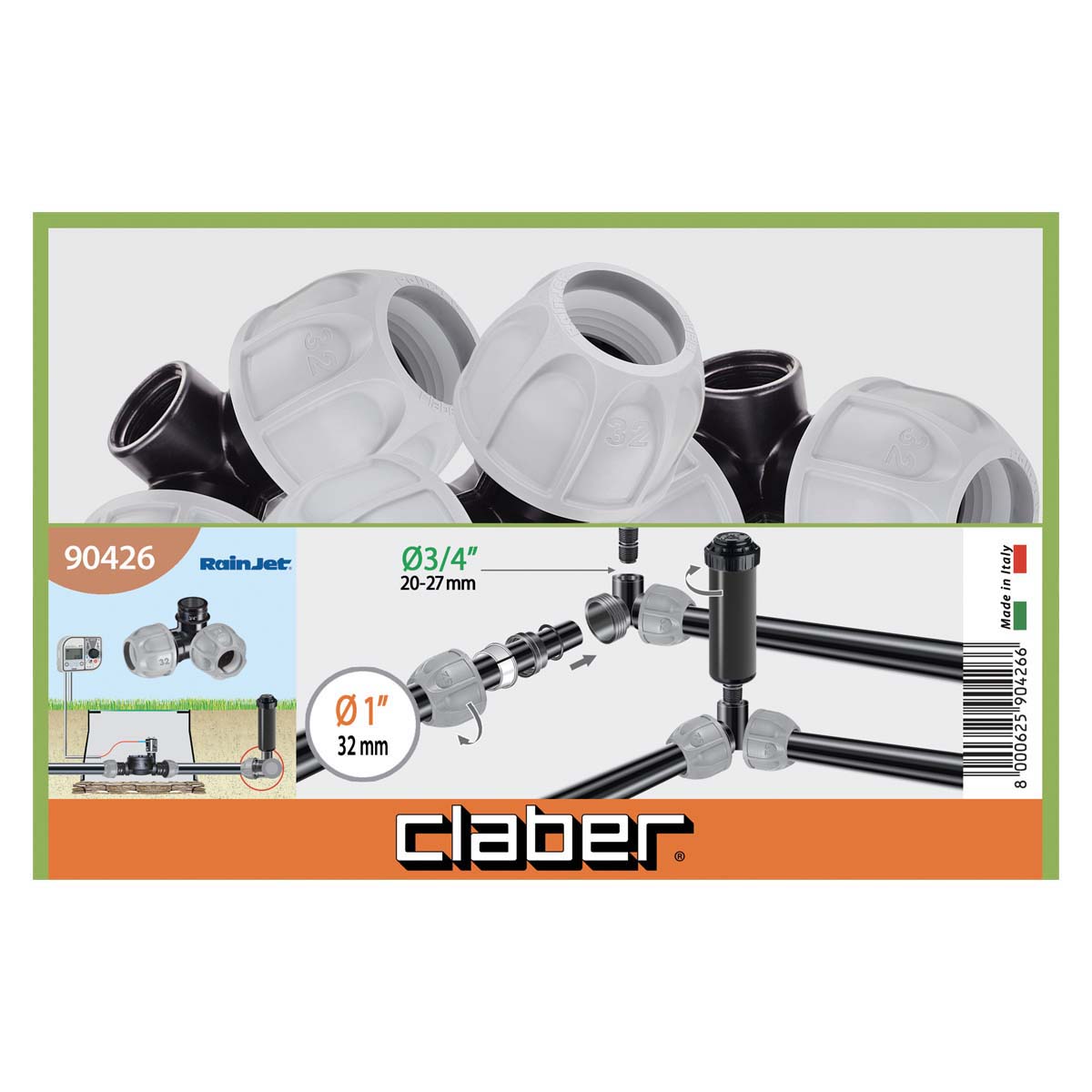

From the Claber range, a practical, reliable solution for ”do it yourself” underground irrigation systems. This component is used to install a pop-up sprinkler with a threaded extension between two polythene hoses at an angle of 90°.

  • perfectly watertight
  • easy installation
GO TO SPECIFICATIONS
COMPARE

DESCRIPTION

For installation on main polyethylene tube after cutting and joining two tube sections. Used with 3/4” (20-27 mm) threaded extension.

TECHNICAL SPECIFICATIONS

  • Width: 115 mm
  • Height: 60 mm
  • Depth: 62 mm
  • Weight: 135 g
  • body: PP
  • Outlet thread: 3/4"
  • Pipe diameter: 32 mm
Code PackagingQuantityWidthHeightDepthVolumeWeightPcs per pallet
90426 Dispenser 8pcs 20cm 13cm 39cm 0,01m³ 1,36 576pcs
