Impact on stake

code 8707

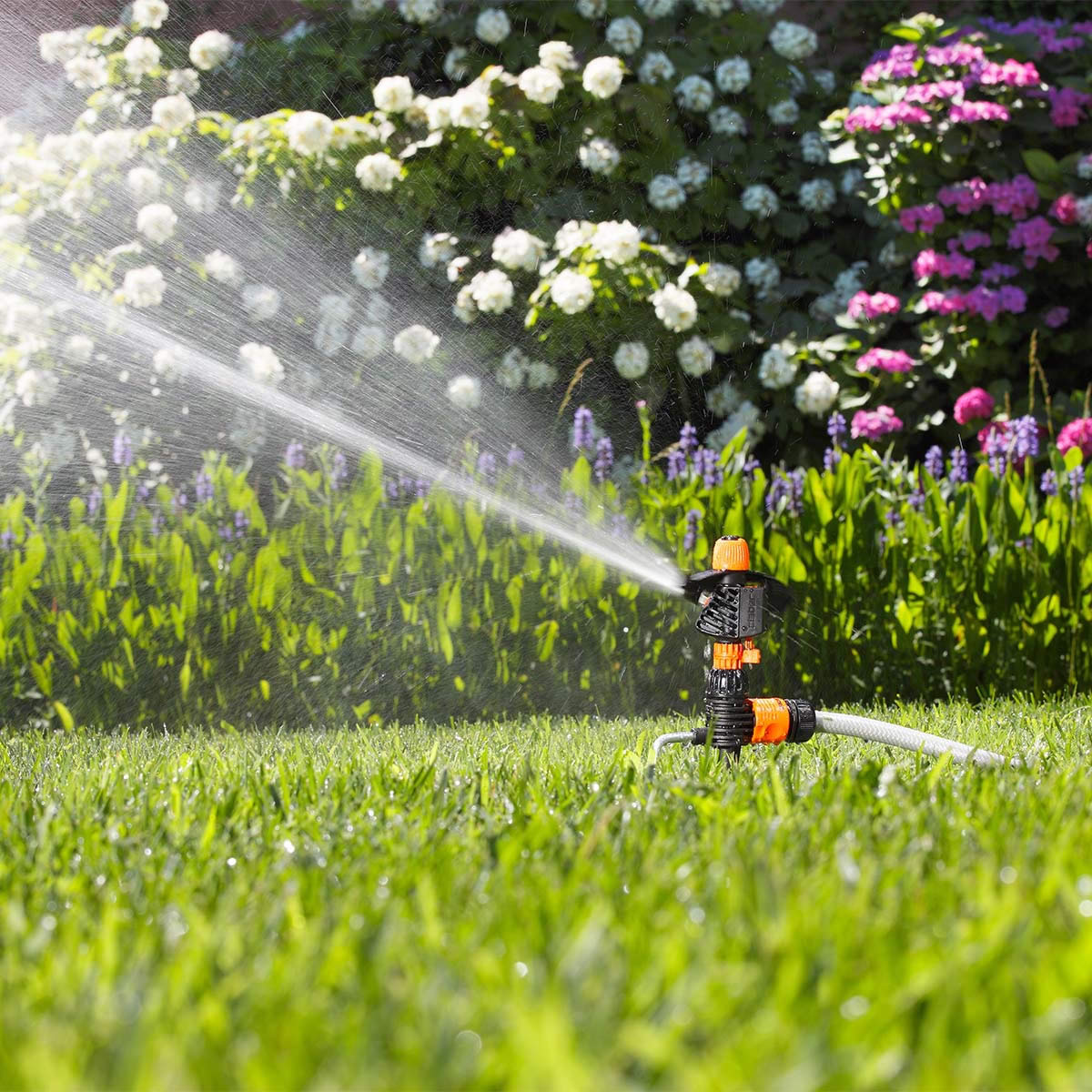

Pulsating sprinkler, it remains stably anchored in the ground thanks to the double spike and it waters an area of considerable dimensions.

  • easy adjustment
  • rust-proof, non-wear materials
  • works at high and low pressures
  • selection of areas to be watered
GO TO SPECIFICATIONS
COMPARE

DESCRIPTION

Pulsating sprinkler head providing 0° to 360° circle coverage or continuous rotation, mounted on steady twin-point stake. Diffuser screw assures even water distribution. Self-adjusting up to 4 bar, adjustment device for optimal setting at high water pressures. Stainless steel pin and wear-resistant bronze bushing. Irrigated area max 397 m².

WATCH THE VIDEO

TECHNICAL SPECIFICATIONS

  • Width: 134,5 mm
  • Height: 365 mm
  • Depth: 50 mm
  • Weight: 280 g
  • spike: stainless steel
  • nozzle: POM
  • central pin: brass
BarØ ml/min
1214,016,59,3
2330,020,511,9
3380,022,014,8
4397,022,516,9
  • Inlet quick connection: Quick-Click System
  • Water flow: adjustable
  • Irrigation: pulsating
  • Maximum covered area: 397 mq
  • Maximum jet range: r 11,25 m
  • Working pressure: 1 - 4 bar
  • Watering angle: 0-360°
  • Water flow: 11,9 l/min at a pressure of 2 Bar
Code PackagingQuantityWidthHeightDepthVolumeWeightPcs per pallet
8707 Hanging carded pack 5pcs 28cm 13cm 25cm 0,009m³ 1,78 360pcs
