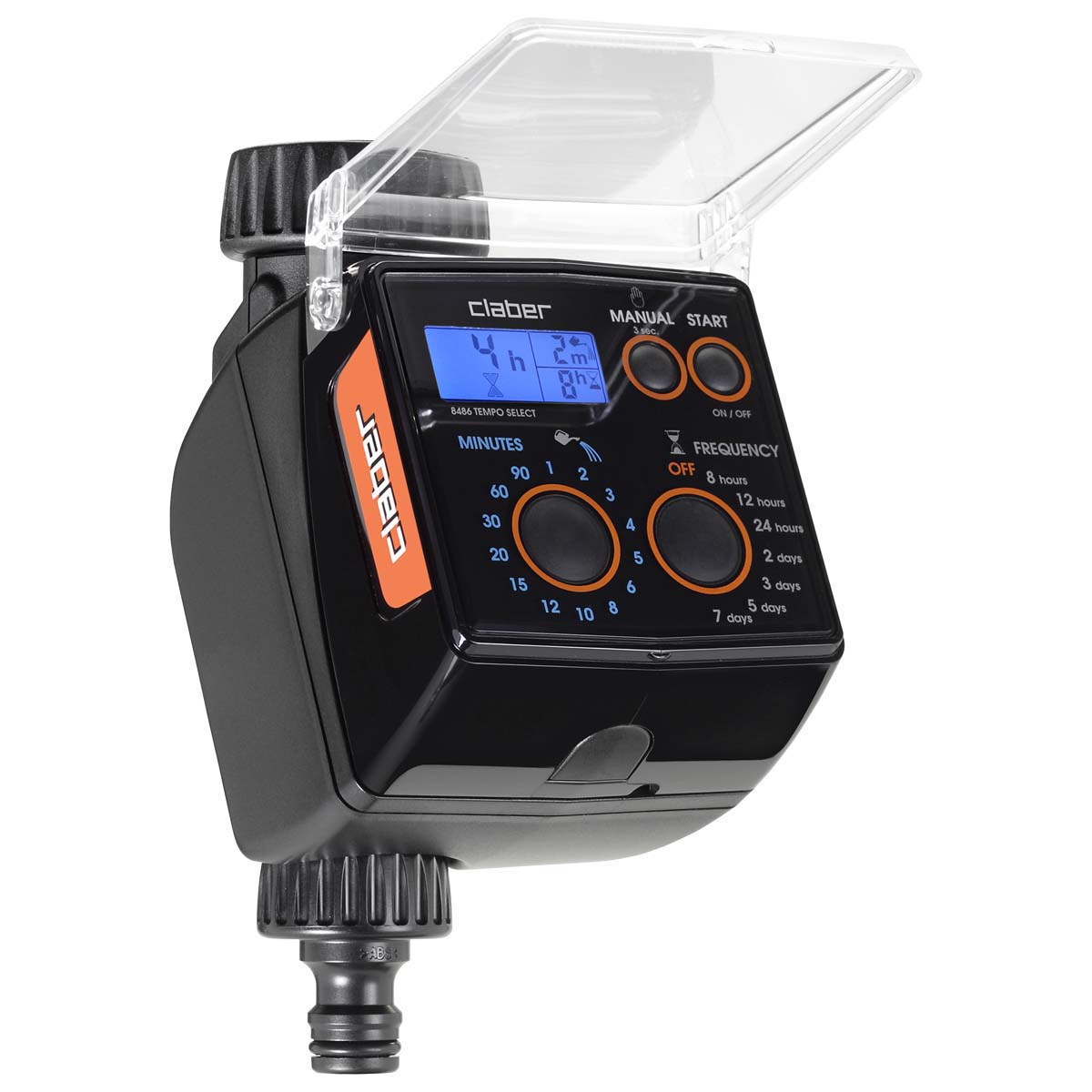

Tempo Select

code 8486

It is simple to manage irrigation as you please, selecting from 14 irrigation times and 7 daily frequencies, to create your own customised program: simply press two push-buttons.

  • 98 possible combinations
  • delayed start
  • high visibility backlit display
  • can be connected to Rain Sensor
GO TO SPECIFICATIONS
COMPARE

DESCRIPTION

One-way automatic water timer. Powered by 2 x 1.5 V AA alkaline batteries, fitted in a rainproof socket. Easy programming with two digital buttons, one selecting 14 watering times, the other 7 frequencies. 98 preset programmes (+ off ). Backlit LCD screen displaying the different functions. Start button allowing immediate or delayed (up to 23 hours) start. On/off button for manual function (5-minute test). Electronic components fully insulated, no wires exposed to view. 3/4” (20-27 mm) tap connector with pivoting ring nut. Washable filter. Operating pressure 0,5 - 10 bar. Can be connected to standard Rain Sensor (90915) or to wireless RF Rain Sensor (90831) - with optional interface (8480). 100% checked and tested.

WATCH THE VIDEO

TECHNICAL SPECIFICATIONS

  • Width: 85 mm
  • Height: 163 mm
  • Depth: 111 mm
  • Weight: 460 g
  • body: ABS
  • cover lid: PMMA
  • panel: PC, SEBS
Bar 0,5 1 2 2,5 3 4 5
l/min 12 17 23 25 27 30 33
  • Inlet thread: 3/4"
  • Outlet thread: 3/4"
  • Outlet quick connection: Quick-Click System
  • Working pressure: 0,5 - 10 bar
  • Outlets: 1
  • Programmes: 98
  • Type of programmes: preset
  • Max. frequency of watering cycles: 3 per day
  • Min. watering duration: 00:01′
  • Max. watering duration: 01:30′
  • Rain sensor: wired, radio frequency
  • Powered by: 2xAA - 1,5V
  • Warranty (years): 3
Code PackagingQuantityWidthHeightDepthVolumeWeightPcs per pallet

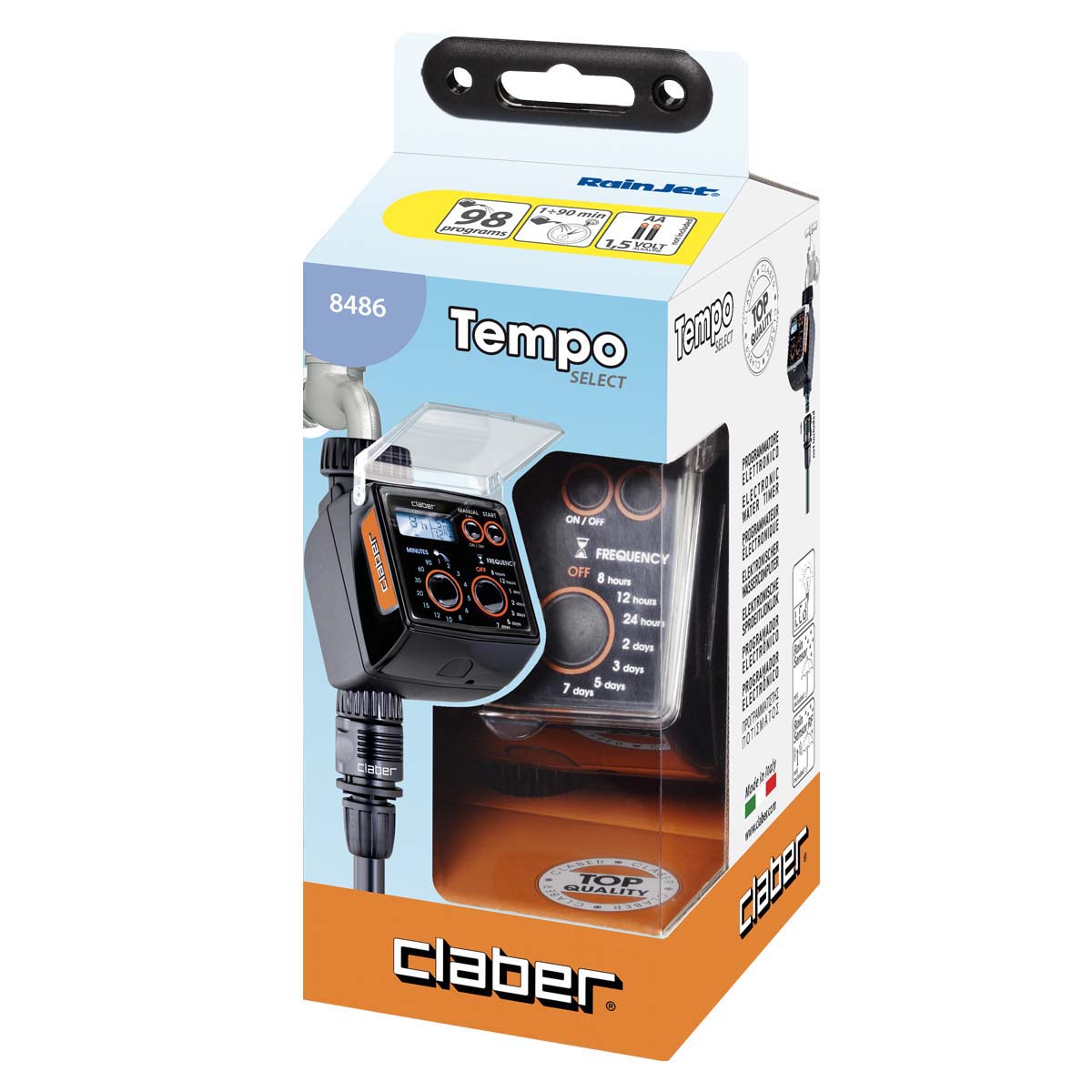

8486 Hanging carded pack 2pcs 25cm 10cm 19cm 0,005m³ 1,39 252pcs
