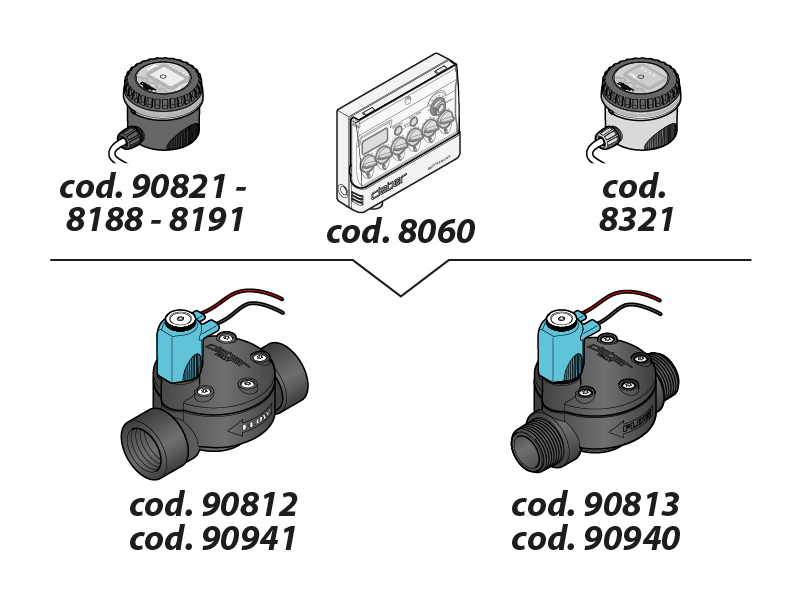

The function of the solenoid valve is to open and close the water lines on the water time control. They work with any type of 9V DC multi-line water timer with the following control units Control Unit (cod. 90821 - 8188 - 8191), RF unit (cod. 8321) and Multipla DC 9V LCD (cod. 8060).

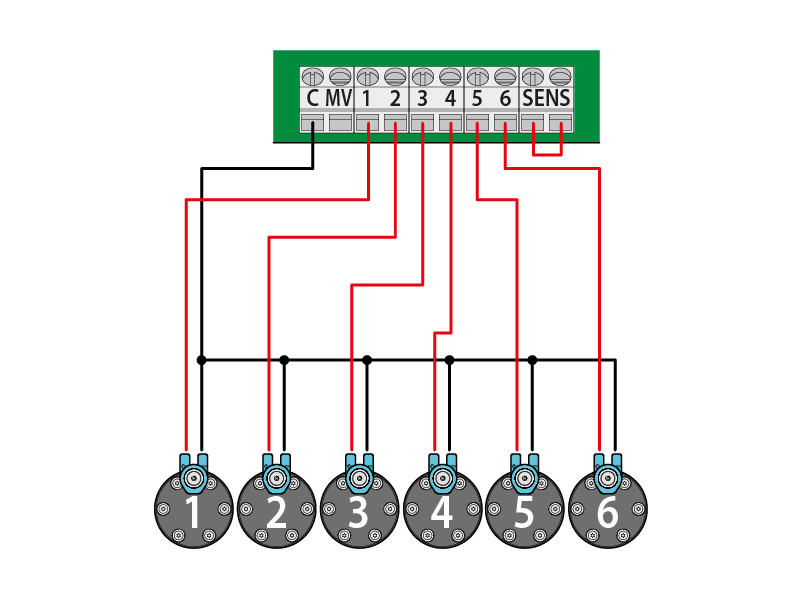

Wiring diagram for the connection of one or more than one solenoid valve to the control unit code 8060.

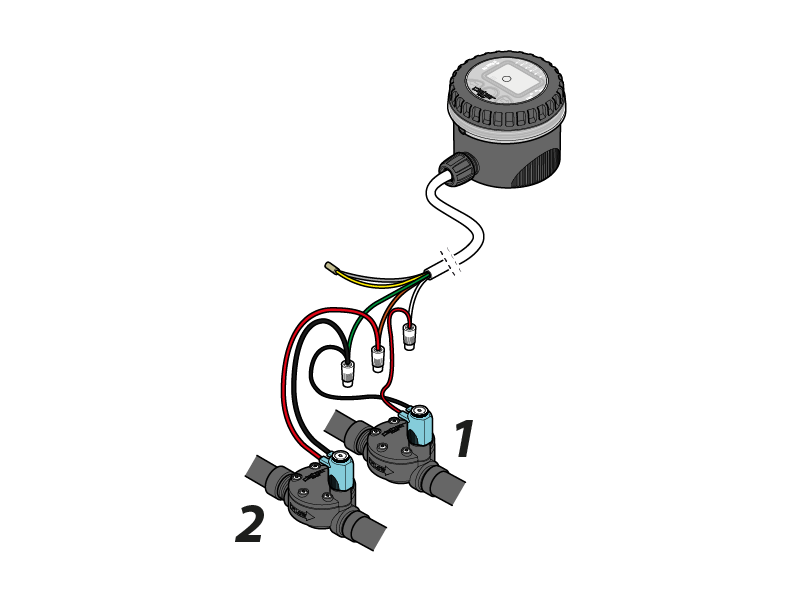

Wiring diagram for the connection of one or more than one solenoid valve to the control unit code 90821 - 90833 - 90836).

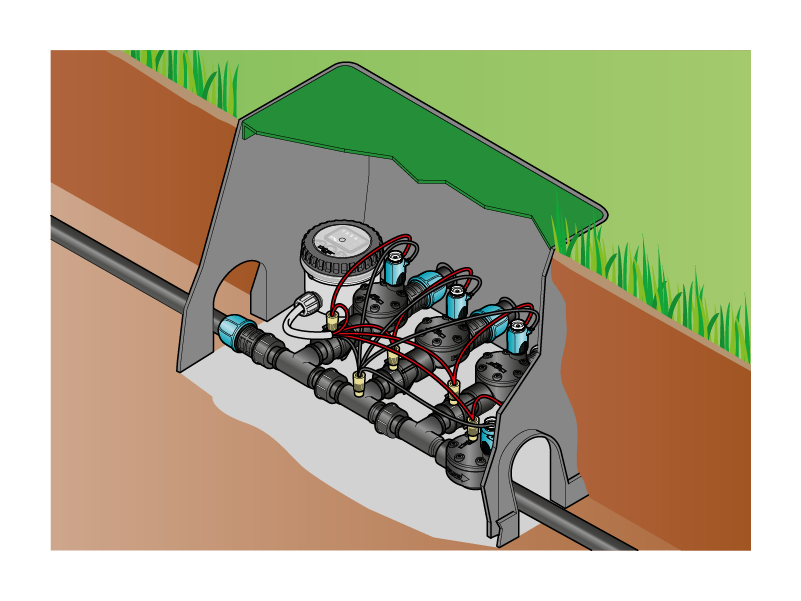

Solenoid valves are usually fitted inside the underground valve boxes code 90510 - 90515 - 90500.
