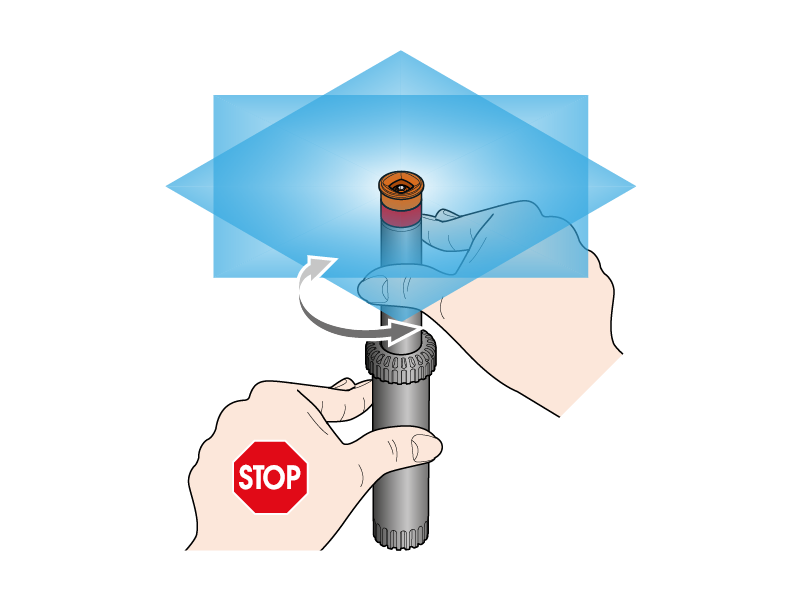

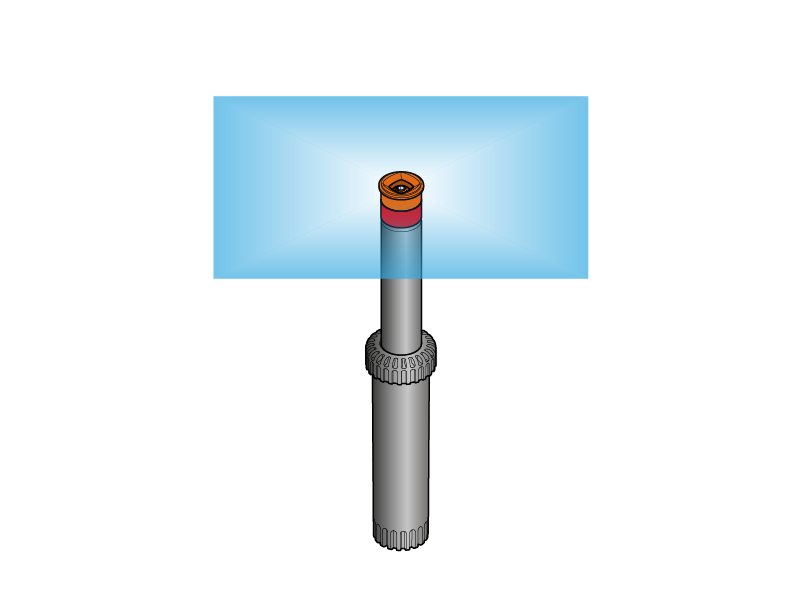

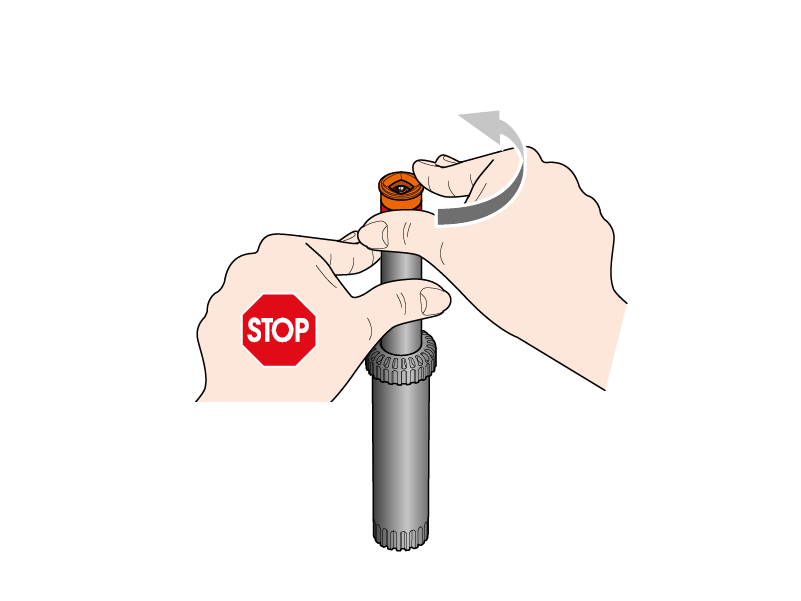

Turn the stem clockwise or anticlockwise while the body of the sprinkler is held fast.
This adjustment must be made while the system is in operation.

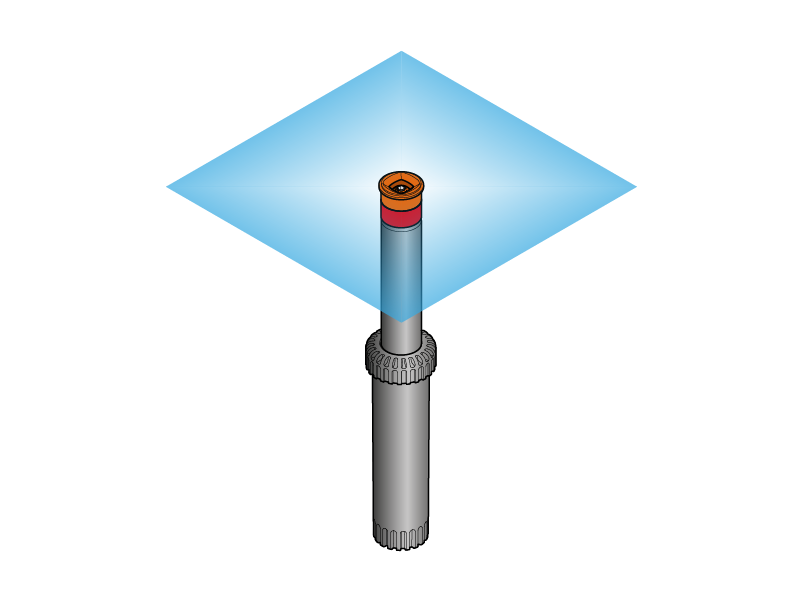

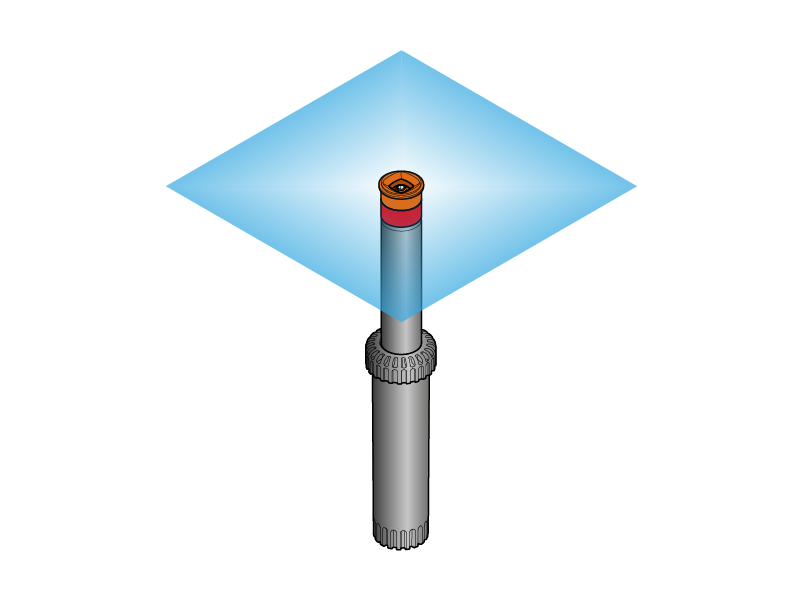

The sprinkler delivers a wide range.

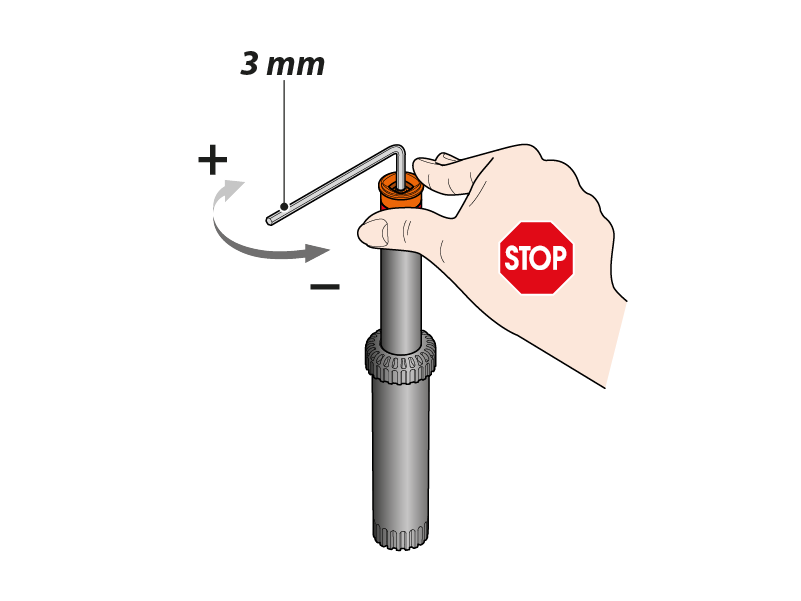

Using a 3mm hex socket key, turn the internal adjuster screw anticlockwise for a longer jet, or clockwise for a shorter one.

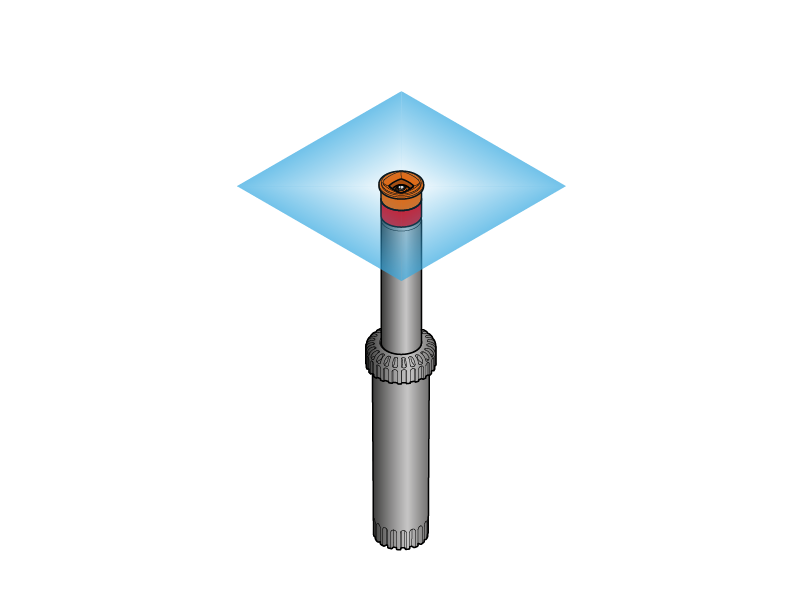

Now the sprinkler delivers a minimum range.

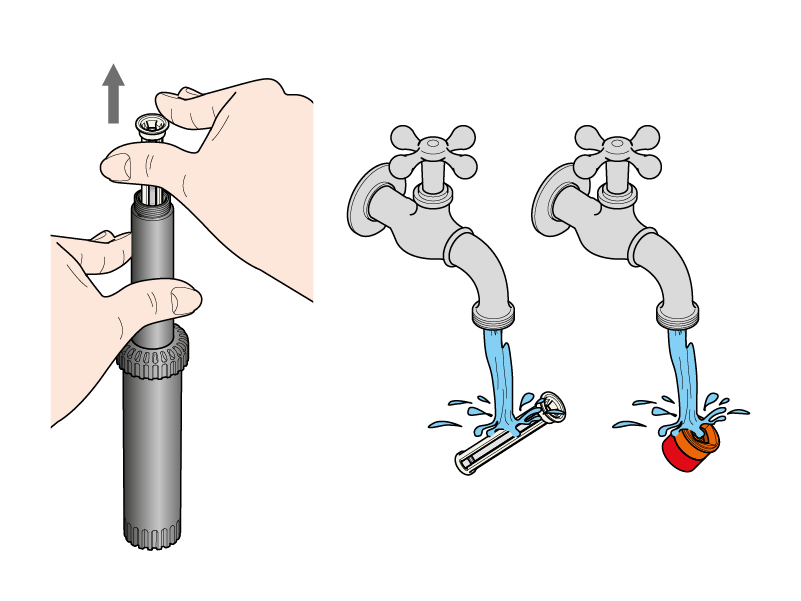

Pebbles, sand, earth or other foreign bodies entering the head could cause the sprinklers to malfunction. Clean as follows: holding the stem with one hand, unscrew the upper part;
take out the filter and clean it, together with the upper part of the sprinkler, under running water;

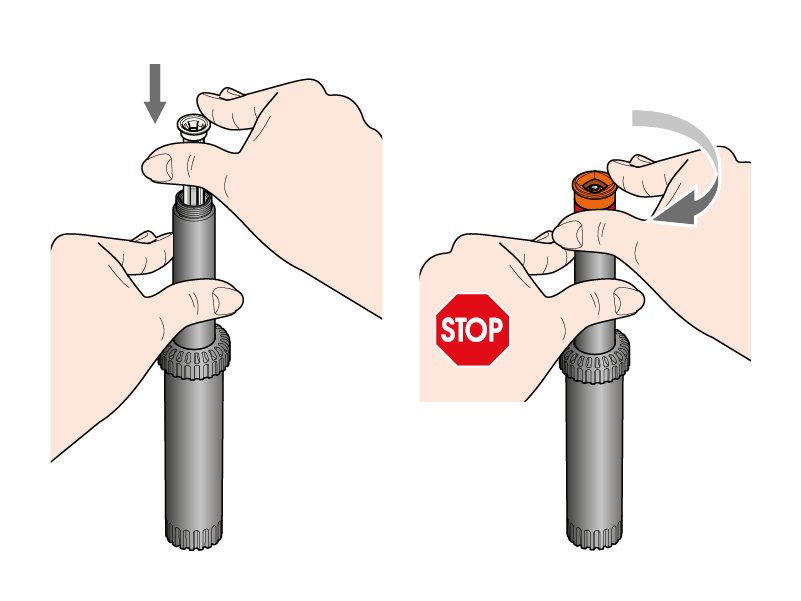

reposition the filter and reassemble the upper part of the sprinkler.

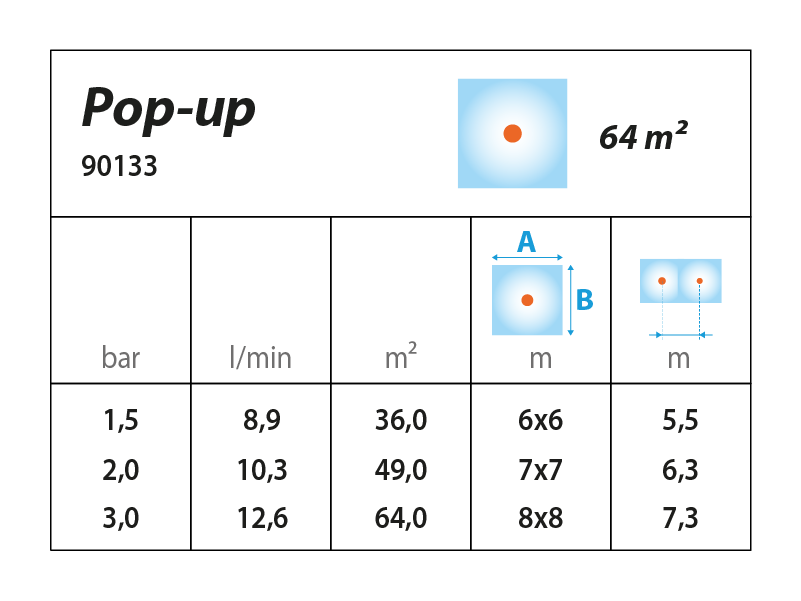

Cod. 90133
