0°-350° - 4” adjustable pop-up
code 90006

Download guide

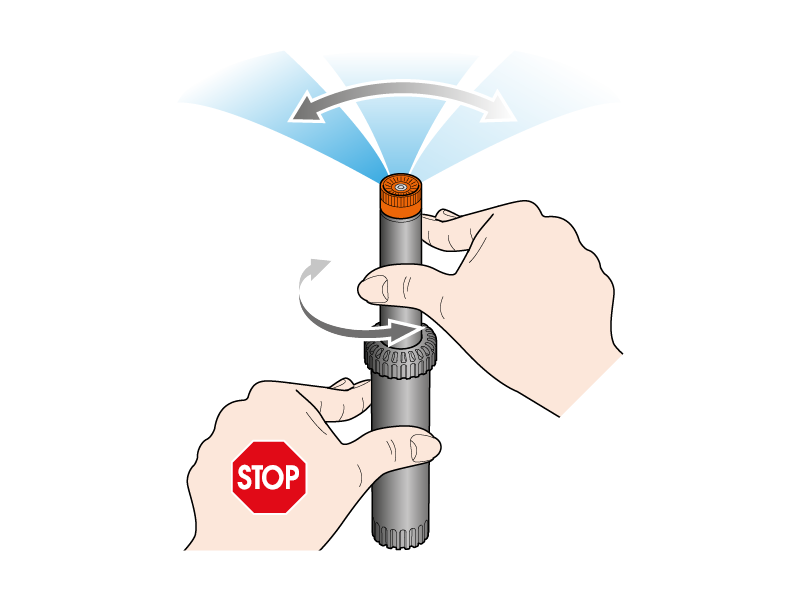

CHANGE THE DIRECTION OF THE JET

The direction of the jet is to the right.

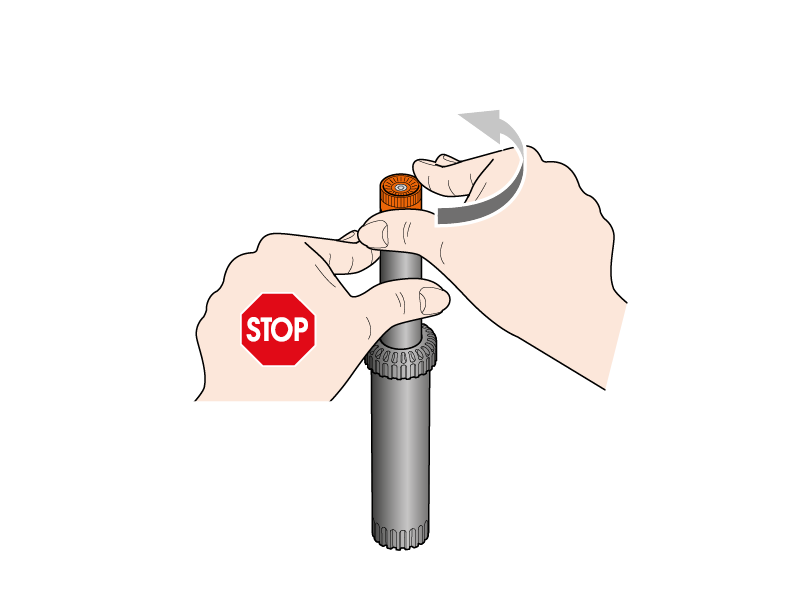

Turn the stem clockwise or anticlockwise while the body of the sprinkler is held fast.

This adjustment must be made while the system is in operation.

The direction of the jet is to the left.

VARY THE ANGLE COVERED BY THE JET BETWEEN 0° AND 350°

The jet of the sprinkler has a minimum angle.

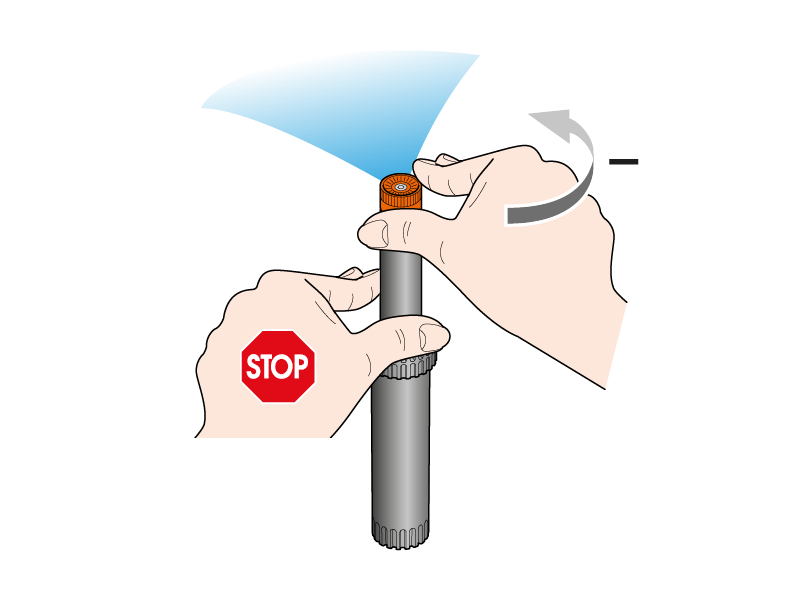

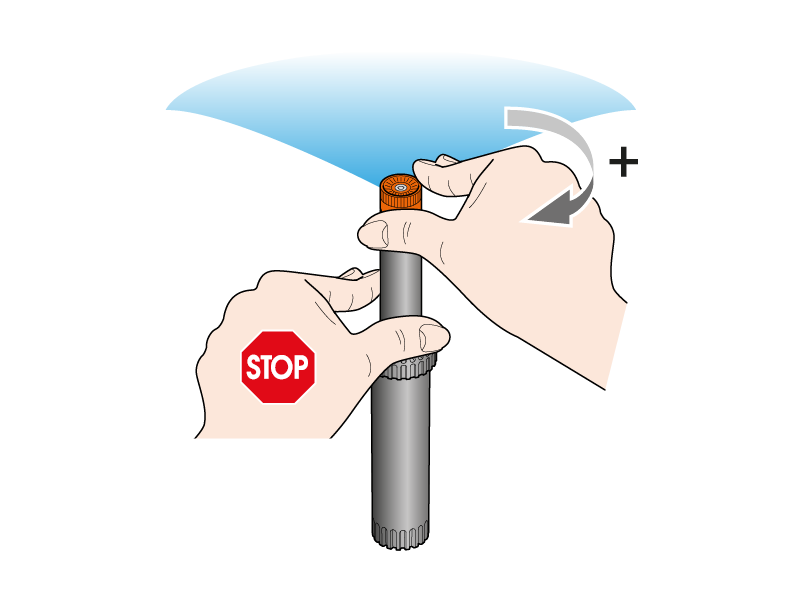

Turn the milled ring nut clockwise to increase the watering angle or anticlockwise to decrease it while holding the lower part of the head and the rod firmly.

Turn the milled ring nut clockwise to increase the watering angle or anticlockwise to decrease it while holding the lower part of the head and the rod firmly.

INCREASE OR REDUCE THE LENGHT OF THE JET

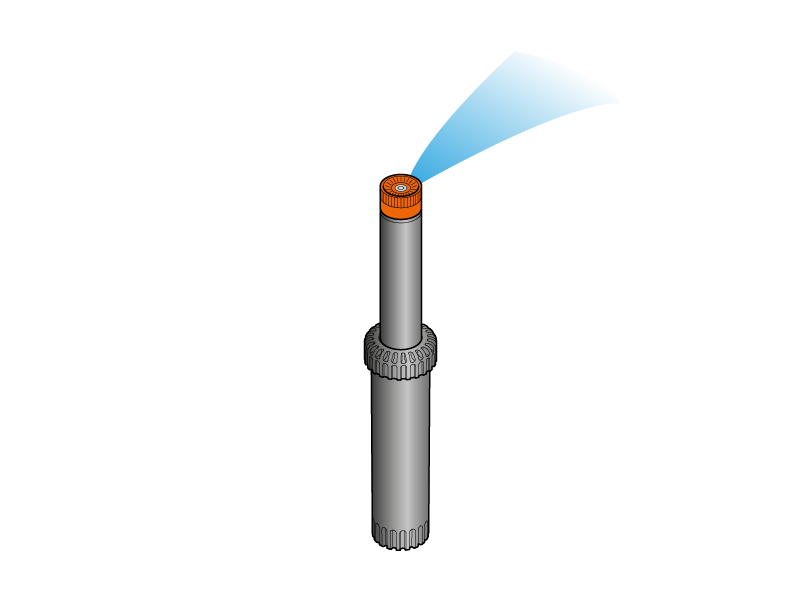

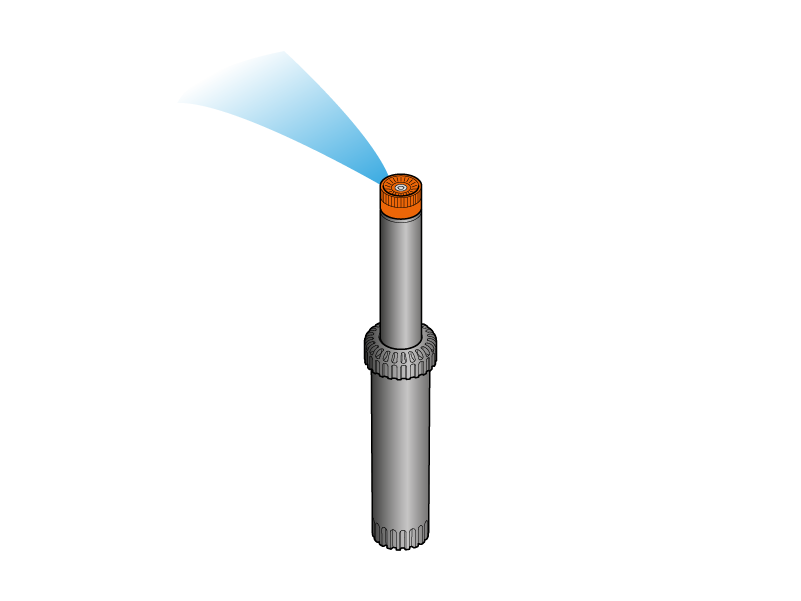

The sprinkler delivers a wide range.

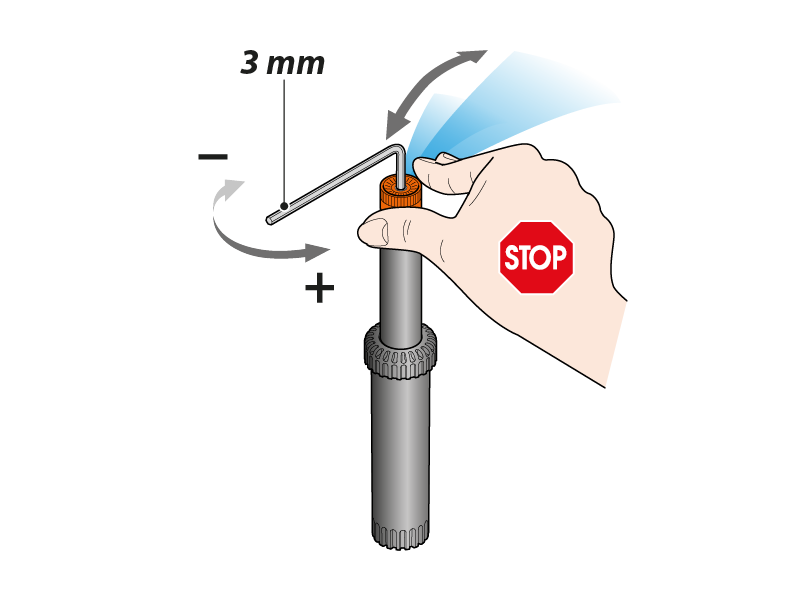

Turn the system on, and engage the hex socket screw on the sprinkler head with a 3mm Allen key. Turn anticlockwise for a longer jet, or clockwise for a shorter one.

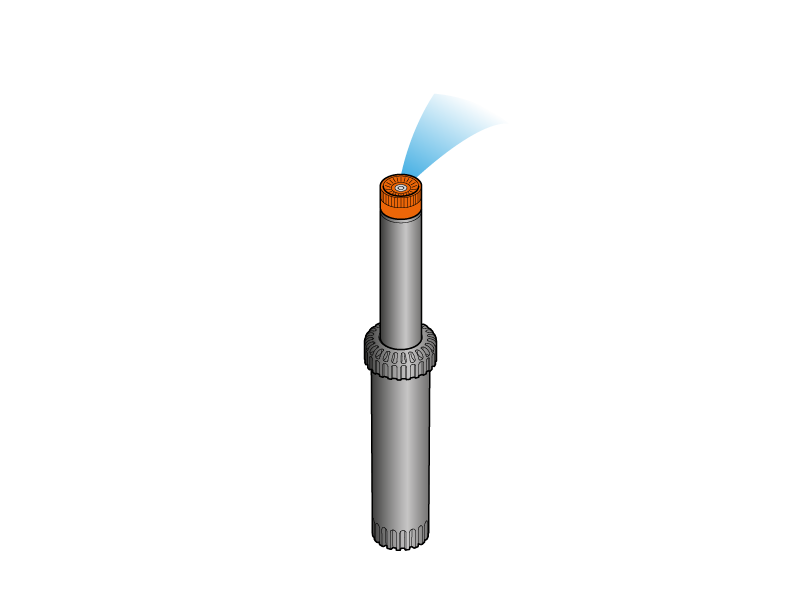

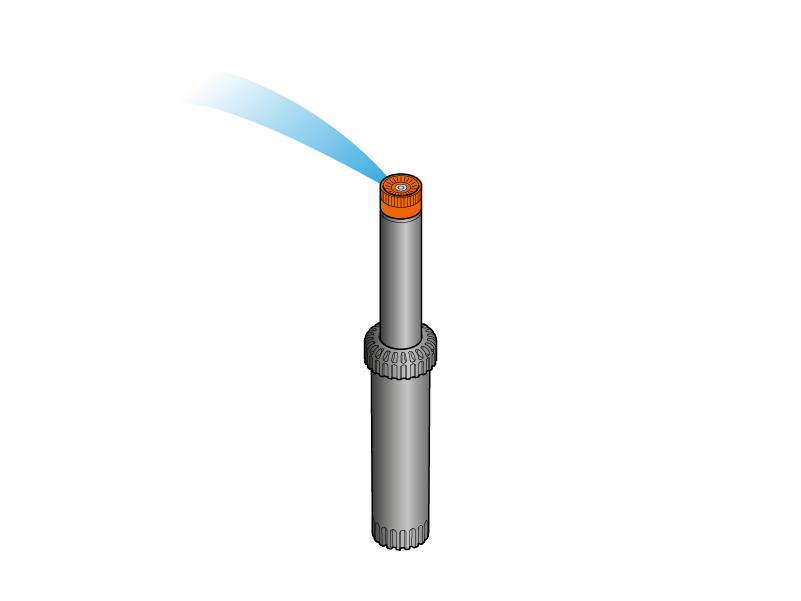

Now the sprinkler delivers a minimum range.

CLEANING AND MAINTENANCE

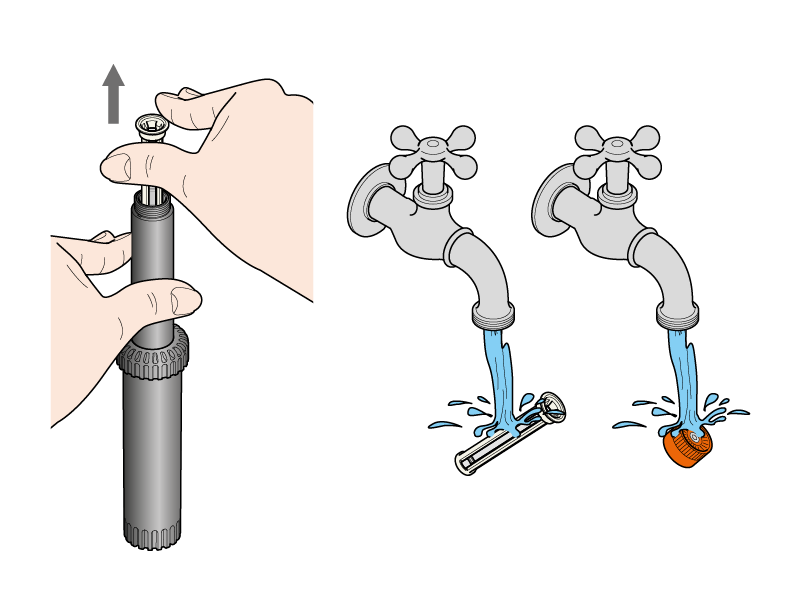

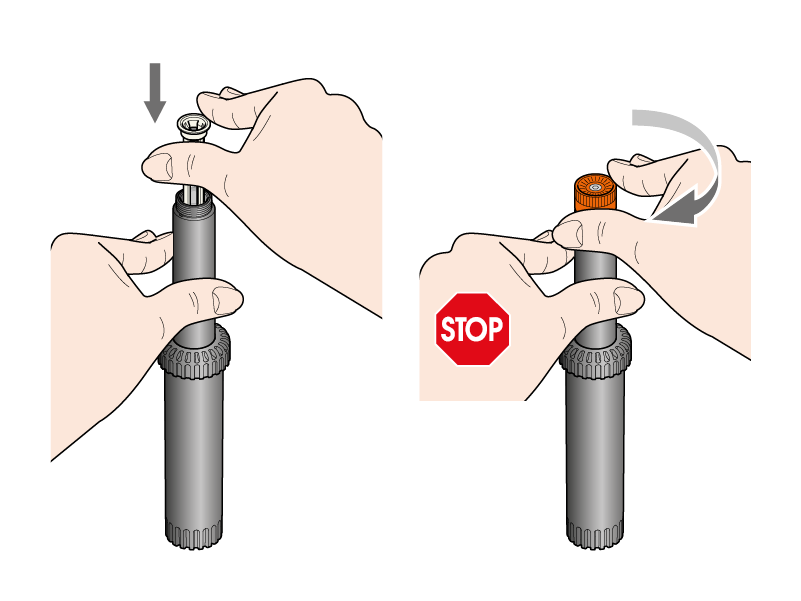

Pebbles, sand, earth or other foreign bodies entering the head could cause the sprinklers to malfunction. Clean as follows: holding the stem with one hand, unscrew the upper part;

take out the filter and clean it, together with the upper part of the sprinkler, under running water;

reposition the filter and reassemble the upper part of the sprinkler.

TABLES INDICATING WATER USAGE OF SPRINKLERS

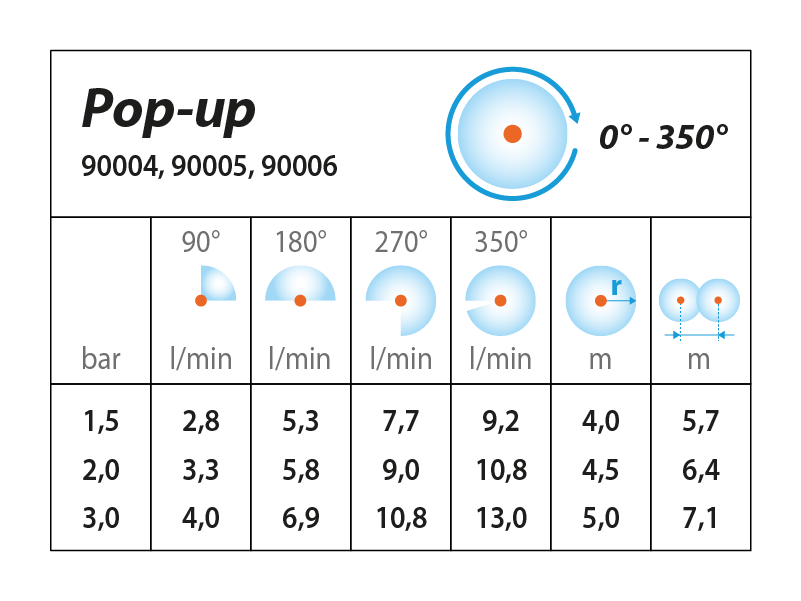

Cod. 90004, 90005, 90006

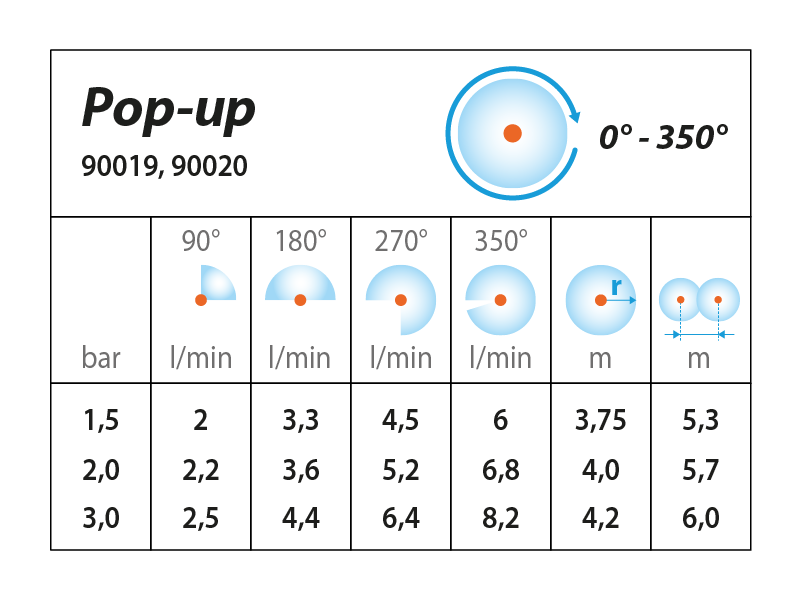

Cod. 90019, 90020
