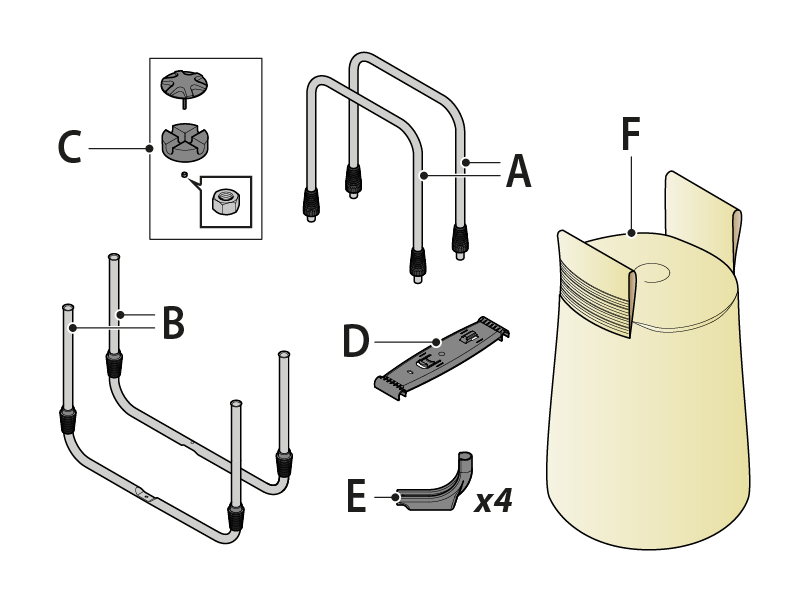

a) Handles with couplings
b) Base legs with couplings
c) Cap with screws and foot
d) Panel with grips
e) Floor stands for base legs
f) PVC tank sack

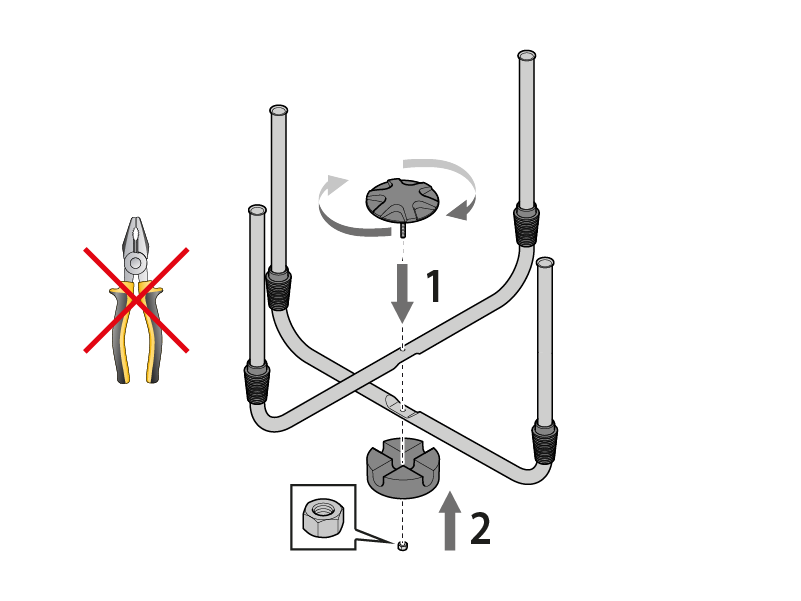

Cross the two base legs and fix them in place by threading the cap into the foot through the hole in the legs and tightening using the nut supplied.

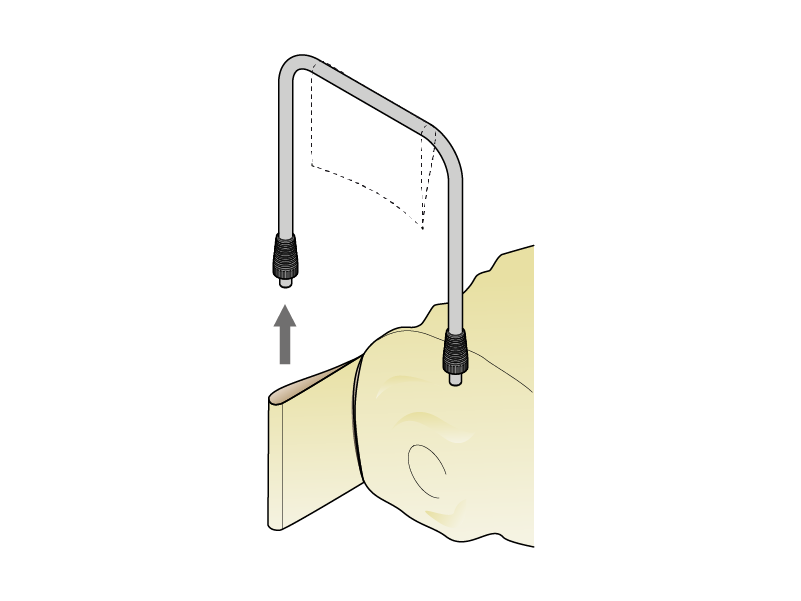

Thread the handles through the two side loops on the PVC tank sack.

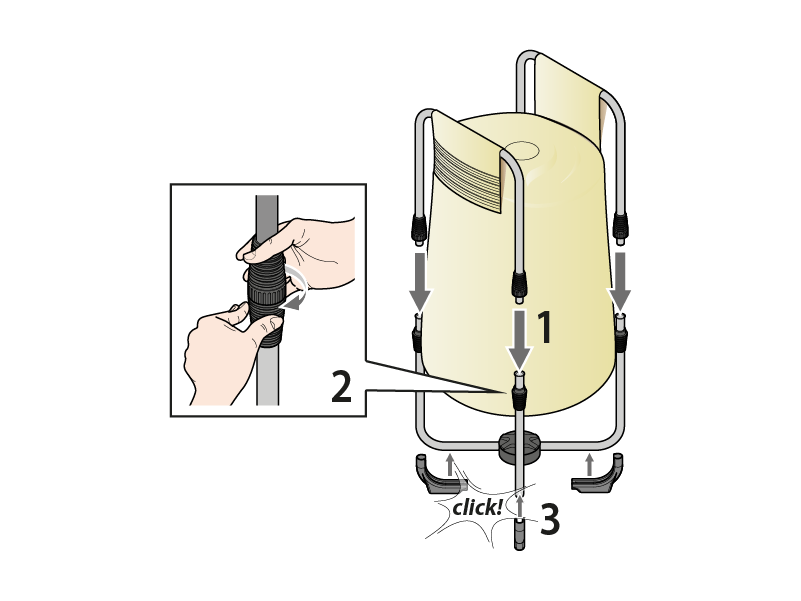

Attach the handles to the base legs and fix by tightening the couplings. Attach the floor stands to the base legs.

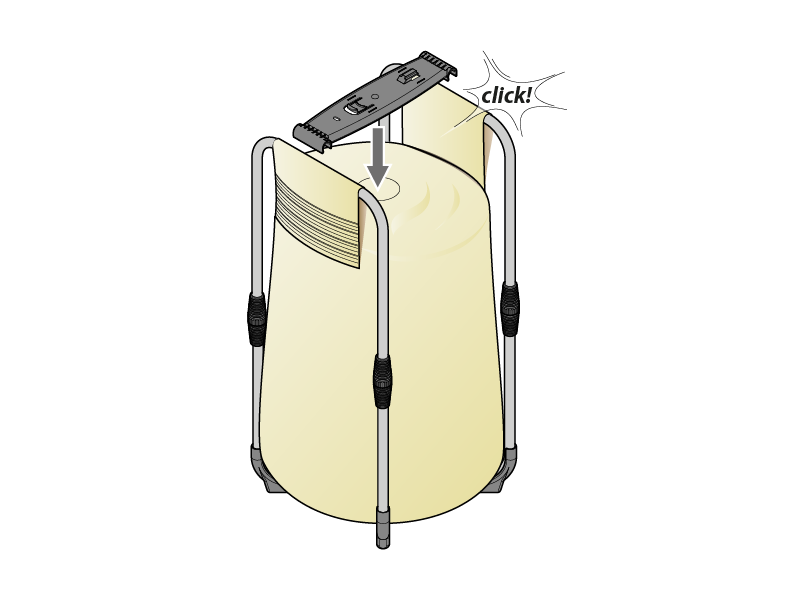

Clip the grips on the panel onto the two handles.

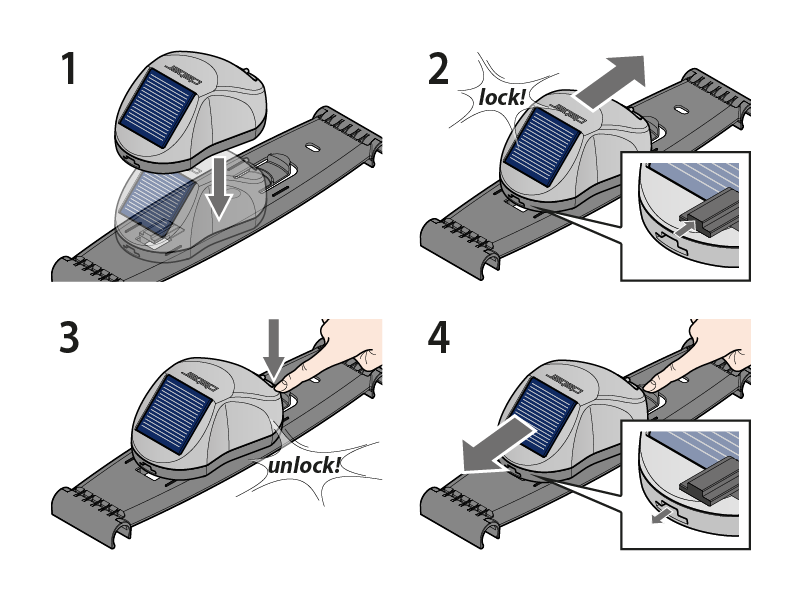

Fit the Aqua-Magic timer (not supplied) to the panel, sliding it along until it locks in place. To release, press gently on the tab and slide it in the opposite direction.

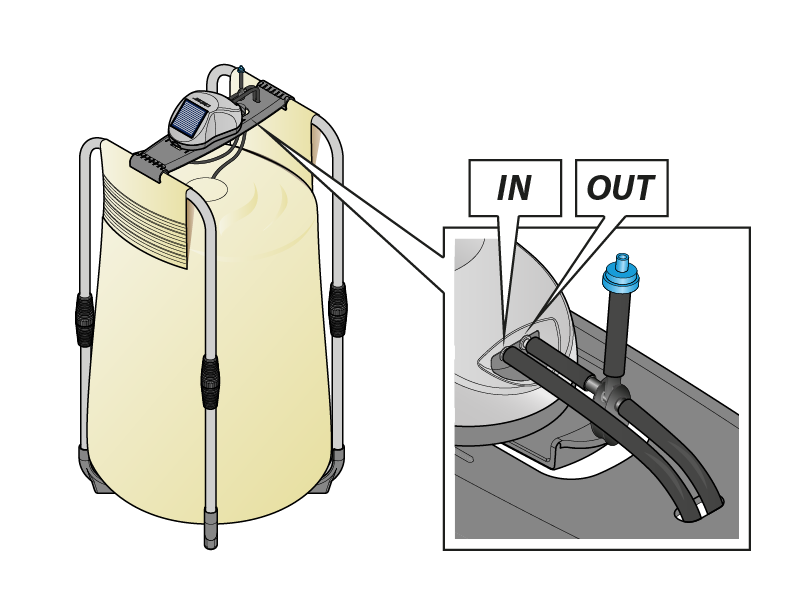

Connect the water supply following the instructions given in the timer instruction leaflet.
To fill the PVC tank sack, lift up the central hole cover and pour in the water using a watering can. The Aqua-Magic timer uses the water it needs for the drip-irrigation system to operate.
